2012 White Suzuki Kizashi EcoCharge Concept

Share


Striking Exterior Styling. The exterior of the Suzuki Kizashi EcoCharge Concept is highlighted by a unique luminescent white satin paint design with a subtle blue undercoat. To further set the concept apart from its production Suzuki Kizashi sibling, it has been given a specialized headlight treatment, as well as LED foglight illumination integrated into the front fascia. The lightweight aluminum wheels communicate a futuristic feel, and are wrapped in low-rolling resistance tires."





Suzuki Kizashi EcoCharge Concept Specifications
  • Engine: J20B DOHC I-4
    • Displacement: 1,998 cc
    • Valvetrain: Intake-VVT
    • Horsepower: 144 hp (106 kW) @ 6500 rpm
    • Torque: 127 lb-ft (173 Nm) @ 4500 rpm
    • Fuel economy target (Hwy): 25 percent improvement over production Kizashi
  • Transmission: 6-speed automatic
  • Electric Drive System
    • Type: Belt-driven, liquid-cooled induction motor/generator unit and lithium-ion battery system; air-cooled power electronics and battery pack
    • Maximum electric generating power: 15 kW @ 1,570-3,180 rpm
    • Maximum electric motor power (electric assist): 15 hp / 11.2kW @ 1000-2200 rpm
    • Lithium-ion battery: 115V, 0.5 kWh, 15 kW peak power

2012 White Suzuki Kizashi EcoCharge Concept Front Angel




2012 White Suzuki Kizashi EcoCharge Concept Side

2012 White Suzuki Kizashi EcoCharge Concept Engine

2012 White Suzuki Kizashi EcoCharge Concept Side


Eco Interior Within, the Suzuki Kizashi EcoCharge Concept utilizes advanced seat materials. These materials require 84 percent less energy to produce, and create 80 percent fewer emissions than virgin material production.

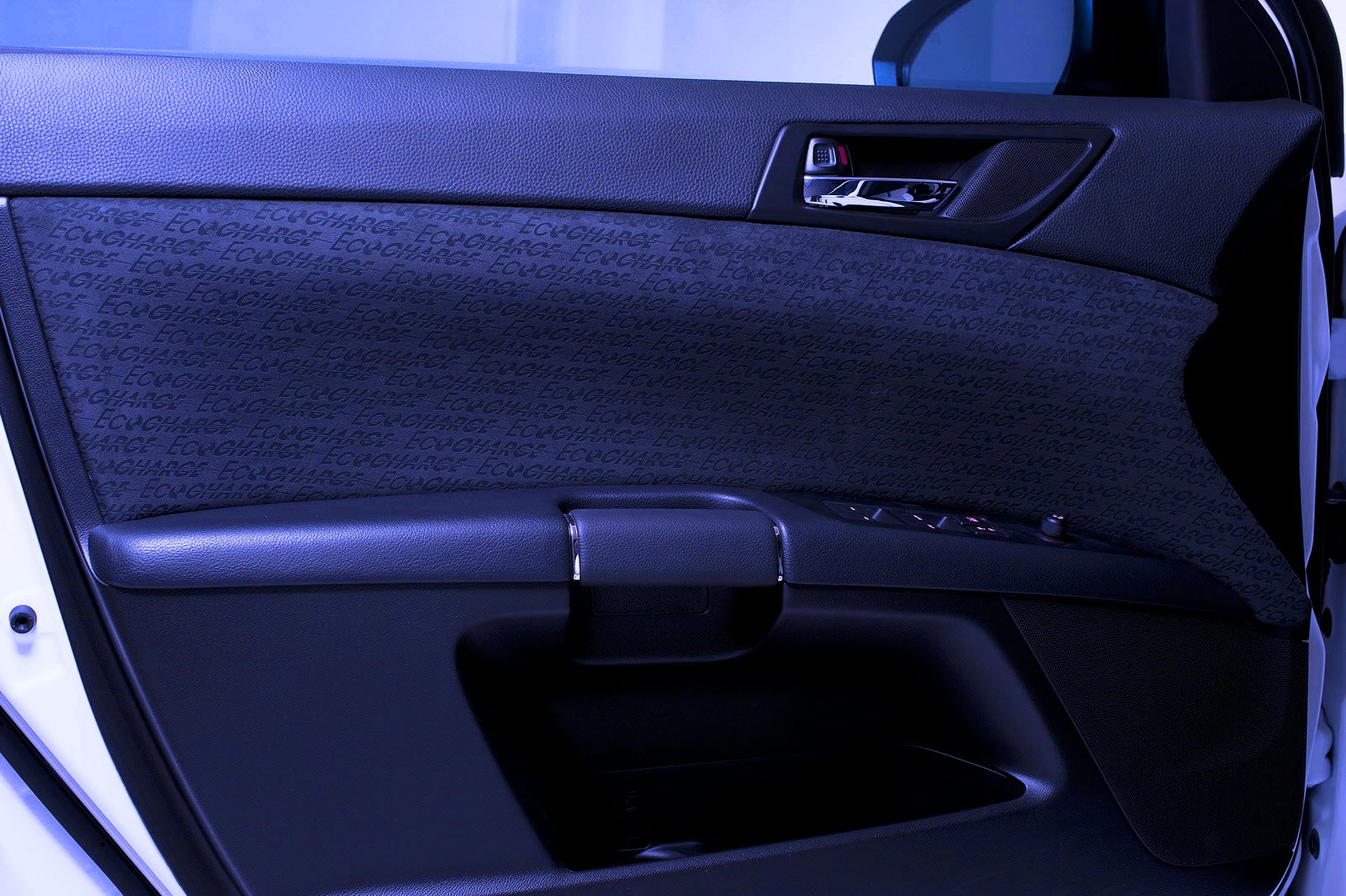

Eco Interior Power Window Switch
Suzuki Kizashi Power train Electrification

The Suzuki Kizashi EcoCharge Concept derives power from a 2.0-liter inline-four gasoline engine, working in tandem with an advanced electric propulsion system, which consists of a liquid-cooled 15-kW motor/generator unit tied to a 115-volt air-cooled lithium-ion battery. The combination optimizes fuel economy and delivers an electric power boost during acceleration for a more spirited driving experience. The Suzuki Kizashi EcoCharge Concept delivers a 25 percent lift to highway fuel economy over today's Kizashi.

To help maximize efficiency, the Suzuki Kizashi EcoCharge Concept also utilizes numerous fuel-conserving technologies, including regenerative braking, automatic engine shut-off when the car comes to a stop, fuel cut-off during deceleration events and low-rolling resistance tires.

Power management is provided via an advanced six-speed automatic transmission designed for smooth operation and a seamless flow of power when called upon by the driver.[source: www.suzuki.com]
